2026 Ford Super Duty F-550 DRW Chassis

at Murphy Ford

Starting at

$85,880

+ Taxes & Licensing

Base Price
$83,185

Destination
$2,695

Four Wheel Drive
6
N/A
N/A
Regular Unleaded V-8
335 @ 3750
468 @ 3750
151
Automatic w/OD N/A

View the latest

Offers & Promotions

Discover exciting national offers from Ford Canada

Offers & Promotions

Try This Super Duty F-550 DRW Chassis Today

Get the Best Value for Your Trade-In

Finance Your Car With Us

Get Your Financing

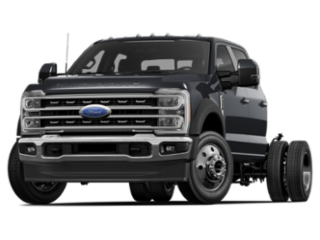

View The Super Duty F-550 DRW Chassis From All Angles

Image-Multiview

2026 Ford Super Duty F-550 DRW Chassis

for sale at Murphy Ford

N/A

L/100 km

N/A

L/100 km

Key Technical Specifications

Four Wheel Drive
6
N/A
N/A
Regular Unleaded V-8
335 @ 3750
468 @ 3750
151
Automatic w/OD N/A

Warranty Info

Basic:
        3 Years/60,000 km

Drivetrain:
        5 Years/100,000 km

Corrosion:
        5 Years/Unlimited km

Roadside Assistance:
        5 Years/100,000 km

All Technical Specs by Group

Chassis

  • Standard Weight - Front: 0
  • Standard Weight - Rear: 0
  • Gross Axle Wt Rating - Front: 2,721.6
  • Gross Axle Wt Rating - Rear: 6,196.18
  • Curb Weight - Front: 1,950.48
  • Curb Weight - Rear: 1,441.54
  • Option Weight - Front: 0
  • Option Weight - Rear: 0
  • Reserve Axle Capacity - Front: 771.12
  • Reserve Axle Capacity - Rear: 4,754.64
  • As Spec'd Curb Weight: 3,392.02
  • As Spec'd Payload: 4,772.78
  • Maximum Payload Capacity: 4,772.78
  • Gross Combined Wt Rating: 13,608
  • Dead Weight Hitch - Max Trailer Wt.: 2,268
  • Dead Weight Hitch - Max Tongue Wt.: 226.8
  • Wt Distributing Hitch - Max Trailer Wt.: 8,391.6
  • Wt Distributing Hitch - Max Tongue Wt.: 839.16
  • Fifth Wheel Hitch - Max Trailer Wt.: 9,480.24
  • Maximum Trailering Capacity: 8,391.6
  • Fifth Wheel Hitch - Max Tongue Wt.: 2,370.06
  • Frame Type: N/A
  • Sect Modulus Rails Only: N/A
  • Frame RBM: N/A
  • Frame Strength: N/A
  • Frame Thickness: N/A
  • Suspension Type - Front: Other
  • Suspension Type - Rear: Leaf
  • Spring Capacity - Front: 2,721.6
  • Spring Capacity - Rear: 6,196.18
  • Axle Type - Front: Non-Independent
  • Axle Type - Rear: Rigid Axle
  • Axle Capacity - Front: 3,175.2
  • Axle Capacity - Rear: 6,196.18
  • Axle Ratio (:1) - Front: 4.88
  • Axle Ratio (:1) - Rear: 4.88
  • Shock Absorber Diameter - Front: N/A
  • Shock Absorber Diameter - Rear: N/A
  • Stabilizer Bar Diameter - Front: N/A
  • Stabilizer Bar Diameter - Rear: N/A
  • Front Tire Order Code: TGJ
  • Rear Tire Order Code: TGJ
  • Spare Tire Order Code: N/A
  • Front Tire Size: LT225/70SR19.5
  • Rear Tire Size: LT225/70SR19.5
  • Spare Tire Size: N/A
  • Front Tire Capacity: 3,402
  • Rear Tire Capacity: 6,804
  • Spare Tire Capacity: N/A
  • Revolutions/Mile @ 45 mph - Front: 647
  • Revolutions/Mile @ 45 mph - Rear: 647
  • Revolutions/Mile @ 45 mph - Spare: N/A
  • Front Wheel Size: 19.5 X 6
  • Rear Wheel Size: 19.5 X 6
  • Spare Wheel Size: N/A
  • Front Wheel Material: Steel
  • Rear Wheel Material: Steel
  • Spare Wheel Material: N/A
  • Steering Type: Re-Circulating Ball
  • Steering Ratio (:1), On Centre: N/A
  • Steering Ratio (:1), At Lock: N/A
  • Turning Diameter - Curb to Curb: 17.43
  • Turning Diameter - Wall to Wall: N/A
  • Brake Type: 4-Wheel Disc
  • Brake ABS System: 4-Wheel
  • Brake ABS System (Second Line): 4-Wheel
  • Disc - Front (Yes or ): Yes
  • Disc - Rear (Yes or ): Yes
  • Front Brake Rotor Diam x Thickness: 391.16
  • Rear Brake Rotor Diam x Thickness: 401.32
  • Drum - Rear (Yes or ): N/A
  • Rear Drum Diam x Width: N/A
  • Fuel Tank Capacity, Approx: 151
  • Aux Fuel Tank Capacity, Approx: N/A
  • Fuel Tank Location: N/A
  • Aux Fuel Tank Location: N/A
  • Gross Axle Weight Rating: 8,917.78
  • Curb Weight: 3,392.02
  • Reserve Axle Capacity: 5,525.76
  • Total Option Weight: 0
  • Payload Weight Front: 0
  • Payload Weight Rear: 0
  • Gross Vehicle Weight Rating: 8,164.8

Vehicle

  • Kg/yr of CO2 Emissions @ 20K km/year: N/A
  • G/km Of CO2 Emissions: N/A

Powertrain

  • Drivetrain: Four Wheel Drive
  • EnerGuide Estimate - City: N/A
  • EnerGuide Estimate - Hwy: N/A
  • Cruising Range - City: N/A
  • Cruising Range - Hwy: N/A
  • Engine Order Code: 99N
  • Engine Type: Regular Unleaded V-8
  • Displacement: 7.3 L/445
  • Fuel System: Sequential MPI
  • SAE Net Horsepower @ RPM: 335 @ 3750
  • SAE Net Torque @ RPM: 468 @ 3750
  • Trans Order Code: 44G
  • Trans Type: 10
  • Trans Description Cont.: Automatic w/OD
  • Trans Description Cont. Again: N/A
  • First Gear Ratio (:1): 4.62
  • Second Gear Ratio (:1): 2.92
  • Third Gear Ratio (:1): 2.13
  • Fourth Gear Ratio (:1): 1.77
  • Fifth Gear Ratio (:1): 1.52
  • Sixth Gear Ratio (:1): 1.28
  • Reverse Ratio (:1): 4.70
  • Clutch Size: N/A
  • Trans Power Take Off: Yes
  • Final Drive Axle Ratio (:1): N/A
  • Transfer Case Model: Electronic
  • Transfer Case Gear Ratio (:1), High: N/A
  • Transfer Case Gear Ratio (:1), Low: N/A
  • Transfer Case Power Take Off: Yes
  • Cold Cranking Amps @ 0° F (Primary): 750
  • Cold Cranking Amps @ 0° F (2nd): 750
  • Maximum Alternator Capacity (amps): 250 & 160
  • Cold Cranking Amps @ 0° F (3rd): N/A
  • Total Cooling System Capacity: N/A
  • Engine Oil Cooler: None
  • Seventh Gear Ratio (:1): 1.00
  • Eighth Gear Ratio (:1): 0.85
  • Ninth Gear Ratio (:1): N/A
  • Tenth Gear Ratio (:1): N/A
  • Usable/net Traction Battery Capacity (kWh): N/A
  • Gross Traction Battery Capacity (kWh): N/A
  • Estimated Battery Range: N/A

Dimensions

  • Passenger Capacity: 6
  • Front Head Room: 1,036.32
  • Front Leg Room: 1,115.06
  • Front Shoulder Room: 1,694.18
  • Front Hip Room: 1,587.5
  • Second Head Room: 1,026.16
  • Second Leg Room: 1,107.44
  • Second Shoulder Room: 1,673.86
  • Second Hip Room: 1,643.38
  • Wheelbase: 5,156.2
  • Length, Overall w/o rear bumper: N/A
  • Length, Overall: 7,345.68
  • Width, Max w/o mirrors: 2,032
  • Height, Overall: 2,098.04
  • Overhang, Front: 972.82
  • Overhang, Rear w/o bumper: 1,198.88
  • Front Bumper to Back of Cab: N/A
  • Cab to Axle: 2,133.6
  • Cab to End of Frame: 3,332.48
  • Ground to Top of Load Floor: N/A
  • Ground to Top of Frame: N/A
  • Frame Width, Rear: 868.68
  • Ground Clearance, Front: 218.44
  • Ground Clearance, Rear: 218.44
  • Body Length: 0
  • Cargo Box Width @ Top, Rear: N/A
  • Cargo Box Width @ Floor: N/A
  • Cargo Box Width @ Wheelhousings: N/A
  • Cargo Box (Area) Height: N/A
  • Tailgate Width: N/A
  • Cargo Volume: N/A
  • Ext'd Cab Cargo Volume: N/A
  • Cab to Body: N/A

Standard Equipment

MECHANICAL

  • Engine: 7.3L 2V DEVCT NA PFI V8 Gas (STD)
  • Transmission: TorqShift 10-Speed Automatic -inc: SelectShift and selectable drive modes: normal, eco, tow/haul, off-road and slippery roads w/transmission power take-off provision (STD)
  • Limited Slip w/4.88 Axle Ratio (STD)

ADDITIONAL EQUIPMENT

  • Transmission w/Driver Selectable Mode and Oil Cooler
  • Electronic Transfer Case
  • Part-Time Four-Wheel Drive
  • 68-Amp/Hr 750CCA Maintenance-Free Battery w/Run Down Protection
  • Dual 250 Amp Alternator
  • Dual 68 AH/65 AGM Batteries
  • Trailer Wiring Harness
  • Towing Equipment -inc: Brake Controller and Trailer Sway Control
  • 4735.5 Kgs Maximum Payload
  • GVWR: 8,165 kgs (18,000 lbs) Payload Package
  • HD Gas-Pressurized Shock Absorbers
  • Front And Rear Anti-Roll Bars
  • Firm Suspension
  • Hydraulic Power-Assist Steering
  • 151 L Fuel Tank
  • Single Stainless Steel Exhaust
  • Dual Rear Wheels
  • Auto Locking Hubs
  • Front Suspension w/Coil Springs
  • Solid Axle Rear Suspension w/Leaf Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
  • Upfitter Switches
  • Chrome Front Bumper w/Body-Coloured Rub Strip/Fascia Accent and 2 Tow Hooks
  • Black Fender Flares
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Black Power Heated Side Mirrors w/Convex Spotter, Manual Folding and Turn Signal Indicator
  • Manual Extendable Trailer Style Mirrors
  • Fixed Rear Window
  • Variable Intermittent Wipers
  • Privacy Glass
  • Aluminum Panels
  • Front Splash Guards
  • Front License Plate Bracket
  • Chrome Grille
  • Autolamp Auto On/Off Reflector Halogen Headlamps w/Delay-Off
  • Cab Clearance Lights
  • Perimeter/Approach Lights
  • Front Fog Lamps
  • Radio w/Seek-Scan, Clock and Speed Compensated Volume Control
  • Radio: AM/FM Stereo w/MP3 Player -inc: 7 speakers
  • Fixed Antenna
  • 7 Speakers
  • SiriusXM Satellite Radio -inc: a 3-month trial subscription for new SiriusXM equipped vehicles, The trial subscription for SiriusXM satellite radio and SiriusXM w/360L is non-transferrable and will automatically stop at the end of your trial subscription period unless you decide to continue service, If you do not wish to enjoy your trial, you can cancel by calling 1-888-539-7474, All SiriusXM services require a subscription, each sold separately by SiriusXM after the trial period, Service is subject to the SiriusXM customer agreement and privacy policy, visit www.siriusxm.ca for complete terms and how to cancel which includes online methods or calling 1-888-539-7474, Some services and features are subject to device capabilities and location availability, Certain features and/or content may not be available in vehicles w/SiriusXM w/360L unless an active data connection is enabled in the vehicle, Content varies by SiriusXM subscription plan, All fees, content and features are subject to change, SiriusXM and related logos are trademarks of Sirius XM Radio Inc, and its respective subsidiaries
  • SYNC 4 -inc: 8" centre display, information on demand panel, wireless phone connection, cloud connected, AppLink w/app catalog, 911 Assist, Apple CarPlay and Android Auto compatibility and digital owner's manual
  • Wireless Phone Connectivity
  • 2 LCD Monitors In The Front
  • 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
  • 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
  • 60-40 Folding Split-Bench Front Facing Fold-Up Cushion Rear Seat
  • Manual Tilt/Telescoping Steering Column
  • Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp, Engine Hour Meter, Trip Odometer and Trip Computer
  • Power Rear Windows
  • Front Cupholder
  • Rear Cupholder
  • 3 12V DC Power Outlets
  • Compass
  • Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
  • Cruise Control w/Steering Wheel Controls
  • Manual Air Conditioning
  • HVAC -inc: Underseat Ducts
  • Locking Glove Box
  • Full Cloth Headliner
  • Urethane Gear Shifter Material
  • Interior Trim -inc: Metal-Look Instrument Panel Insert and Chrome Interior Accents
  • Cloth 40/20/40 Front Bench Seat -inc: centre armrest and storage, centre under-seat storage, 2-way manual adjustable driver/passenger seat and headrests and driver's side manual lumbar
  • Day-Night Rearview Mirror
  • Driver And Passenger Visor Vanity Mirrors
  • 3 12V DC Power Outlets and 1 Interior 120V AC Power Outlet
  • Full Overhead Console w/Storage, 3 12V DC Power Outlets and 1 Interior 120V AC Power Outlet
  • Fade-To-Off Interior Lighting
  • Front And Rear Map Lights
  • Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats
  • Smart Device Remote Engine Start
  • Smart Device Integration
  • Ford Connectivity Package (1-Year Included) -inc: unlimited Wi-Fi hotspot, Features may vary by make and model, Included for 1-year from warranty start date, Requires activation via Ford app w/credit card authorization; customer may cancel at any time, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, Ford may temporarily slow data speeds if such data usage reaches or exceeds 50GB within a billing cycle or due to network limitations, If a customer uses more than 50% of their data usage in a roaming country during a 60-day period, Ford may remove or limit the customer's data plan
  • Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and Locking 1st Row Underseat Storage
  • Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
  • Delayed Accessory Power
  • Power Door Locks w/Autolock Feature
  • Driver Information Centre
  • Trip Computer
  • Outside Temp Gauge
  • Digital/Analog Appearance
  • Front Centre Armrest w/Storage
  • Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
  • Seats w/Cloth Back Material
  • 2 Seatback Storage Pockets
  • Perimeter Alarm
  • Securilock Anti-Theft Ignition (pats) Immobilizer
  • Air Filtration
  • Driveline Traction Control
  • Side Impact Beams
  • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
  • Emergency Sos Capability
  • Pre-Collision Assist with Automatic Emergency Braking (AEB)
  • Lane Departure Warning
  • Collision Mitigation-Front
  • Tire Specific Low Tire Pressure Warning
  • Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
  • Safety Canopy System Curtain 1st And 2nd Row Airbags
  • Dual Stage Driver And Passenger Front Airbags
  • Rear Child Safety Locks

EXTERIOR

  • Wheels: 19.5" Argent Painted Steel (STD)
  • Tires: 225/70Rx19.5G BSW A/P -inc: Spare may not be the same as the road tire (STD)
