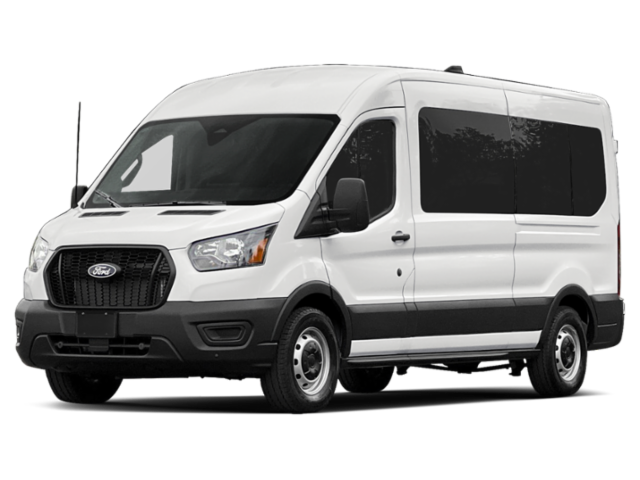

2026 Ford Transit Passenger Wagon

at Murphy Ford

Starting at

$76,695

+ Taxes & Licensing

Base Price
$73,700

Destination
$2,995

Rear Wheel Drive
12
N/A
N/A
Regular Unleaded V-6
275 @ 6250
260 @ 4000
95
Automatic w/OD N/A

View the latest

Offers & Promotions

Discover exciting national offers from Ford Canada

Offers & Promotions

Try This Transit Passenger Wagon Today

Get the Best Value for Your Trade-In

Finance Your Car With Us

Get Your Financing

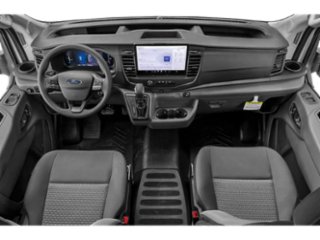

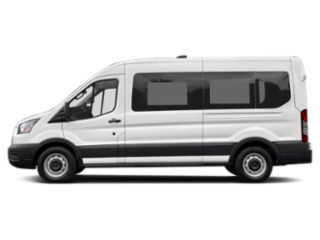

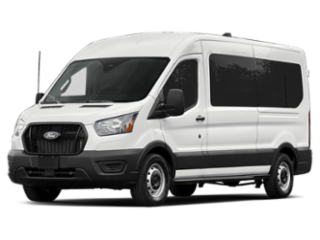

View The Transit Passenger Wagon From All Angles

Image-Multiview
Image-Multiview
Image-Multiview
Image-Multiview

2026 Ford Transit Passenger Wagon

for sale at Murphy Ford

N/A

L/100 km

N/A

L/100 km

Key Technical Specifications

Rear Wheel Drive
12
N/A
N/A
Regular Unleaded V-6
275 @ 6250
260 @ 4000
95
Automatic w/OD N/A

Warranty Info

Basic:
        3 Years/60,000 km

Drivetrain:
        5 Years/100,000 km

Corrosion:
        5 Years/Unlimited km

Roadside Assistance:
        5 Years/100,000 km

All Technical Specs by Group

Chassis

  • Standard Weight - Front: 0
  • Standard Weight - Rear: 0
  • Gross Axle Wt Rating - Front: 1,873.37
  • Gross Axle Wt Rating - Rear: 2,621.81
  • Curb Weight - Front: 1,475.11
  • Curb Weight - Rear: 1,315.44
  • Option Weight - Front: 0
  • Option Weight - Rear: 0
  • Reserve Axle Capacity - Front: 398.26
  • Reserve Axle Capacity - Rear: 1,306.37
  • As Spec'd Curb Weight: 2,790.55
  • As Spec'd Payload: 1,518.65
  • Maximum Payload Capacity: 1,518.65
  • Gross Combined Wt Rating: 4,898.88
  • Dead Weight Hitch - Max Trailer Wt.: 1,859.76
  • Dead Weight Hitch - Max Tongue Wt.: 185.98
  • Wt Distributing Hitch - Max Trailer Wt.: 1,859.76
  • Wt Distributing Hitch - Max Tongue Wt.: 185.98
  • Fifth Wheel Hitch - Max Trailer Wt.: N/A
  • Maximum Trailering Capacity: 1,859.76
  • Fifth Wheel Hitch - Max Tongue Wt.: N/A
  • Frame Type: N/A
  • Sect Modulus Rails Only: N/A
  • Frame RBM: N/A
  • Frame Strength: N/A
  • Frame Thickness: N/A
  • Suspension Type - Front: Strut
  • Suspension Type - Rear: Leaf
  • Spring Capacity - Front: N/A
  • Spring Capacity - Rear: N/A
  • Axle Type - Front: Independent
  • Axle Type - Rear: Rigid Axle
  • Axle Capacity - Front: N/A
  • Axle Capacity - Rear: N/A
  • Axle Ratio (:1) - Front: 3.73
  • Axle Ratio (:1) - Rear: 3.73
  • Shock Absorber Diameter - Front: N/A
  • Shock Absorber Diameter - Rear: N/A
  • Stabilizer Bar Diameter - Front: N/A
  • Stabilizer Bar Diameter - Rear: N/A
  • Front Tire Order Code: N/A
  • Rear Tire Order Code: N/A
  • Spare Tire Order Code: N/A
  • Front Tire Size: LT235/65RR16
  • Rear Tire Size: LT235/65RR16
  • Spare Tire Size: Full-Size
  • Front Tire Capacity: N/A
  • Rear Tire Capacity: N/A
  • Spare Tire Capacity: N/A
  • Revolutions/Mile @ 45 mph - Front: 720
  • Revolutions/Mile @ 45 mph - Rear: 720
  • Revolutions/Mile @ 45 mph - Spare: N/A
  • Front Wheel Size: 16 X 6.5
  • Rear Wheel Size: 16 X 6.5
  • Spare Wheel Size: Full-Size
  • Front Wheel Material: Steel
  • Rear Wheel Material: Steel
  • Spare Wheel Material: Steel
  • Steering Type: Rack-Pinion
  • Steering Ratio (:1), On Centre: N/A
  • Steering Ratio (:1), At Lock: N/A
  • Turning Diameter - Curb to Curb: 14.57
  • Turning Diameter - Wall to Wall: N/A
  • Brake Type: 4-Wheel Disc
  • Brake ABS System: 4-Wheel
  • Brake ABS System (Second Line): 4-Wheel
  • Disc - Front (Yes or ): Yes
  • Disc - Rear (Yes or ): Yes
  • Front Brake Rotor Diam x Thickness: 307.34
  • Rear Brake Rotor Diam x Thickness: 307.34
  • Drum - Rear (Yes or ): N/A
  • Rear Drum Diam x Width: N/A
  • Fuel Tank Capacity, Approx: 95
  • Aux Fuel Tank Capacity, Approx: N/A
  • Fuel Tank Location: N/A
  • Aux Fuel Tank Location: N/A
  • Gross Axle Weight Rating: 4,495.18
  • Curb Weight: 2,790.55
  • Reserve Axle Capacity: 1,704.63
  • Total Option Weight: 0
  • Payload Weight Front: 0
  • Payload Weight Rear: 0
  • Gross Vehicle Weight Rating: 4,309.2

Vehicle

  • Kg/yr of CO2 Emissions @ 20K km/year: N/A
  • G/km Of CO2 Emissions: N/A
  • Rear Door Type: Split Swing-Out

Powertrain

  • Drivetrain: Rear Wheel Drive
  • EnerGuide Estimate - City: N/A
  • EnerGuide Estimate - Hwy: N/A
  • Cruising Range - City: N/A
  • Cruising Range - Hwy: N/A
  • Engine Order Code: 998
  • Engine Type: Regular Unleaded V-6
  • Displacement: 3.5 L/213
  • Fuel System: Port/Direct Injection
  • SAE Net Horsepower @ RPM: 275 @ 6250
  • SAE Net Torque @ RPM: 260 @ 4000
  • Trans Order Code: 44U
  • Trans Type: 10
  • Trans Description Cont.: Automatic w/OD
  • Trans Description Cont. Again: N/A
  • First Gear Ratio (:1): 4.69
  • Second Gear Ratio (:1): 2.98
  • Third Gear Ratio (:1): 2.15
  • Fourth Gear Ratio (:1): 1.77
  • Fifth Gear Ratio (:1): 1.52
  • Sixth Gear Ratio (:1): 1.27
  • Reverse Ratio (:1): 4.87
  • Clutch Size: N/A
  • Trans Power Take Off: N/A
  • Final Drive Axle Ratio (:1): N/A
  • Transfer Case Model: None
  • Transfer Case Gear Ratio (:1), High: N/A
  • Transfer Case Gear Ratio (:1), Low: N/A
  • Transfer Case Power Take Off: No
  • Cold Cranking Amps @ 0° F (Primary): N/A
  • Cold Cranking Amps @ 0° F (2nd): N/A
  • Maximum Alternator Capacity (amps): 250
  • Cold Cranking Amps @ 0° F (3rd): N/A
  • Total Cooling System Capacity: N/A
  • Engine Oil Cooler: None
  • Seventh Gear Ratio (:1): 1.00
  • Eighth Gear Ratio (:1): 0.85
  • Ninth Gear Ratio (:1): N/A
  • Tenth Gear Ratio (:1): N/A
  • Usable/net Traction Battery Capacity (kWh): N/A
  • Gross Traction Battery Capacity (kWh): N/A
  • Estimated Battery Range: N/A

Dimensions

  • Passenger Capacity: 12
  • Front Head Room: 1,320.8
  • Front Leg Room: 1,049.02
  • Front Shoulder Room: 1,724.66
  • Front Hip Room: 1,541.78
  • Second Head Room: 1,417.32
  • Second Leg Room: 855.98
  • Second Shoulder Room: 1,813.56
  • Second Hip Room: 1,767.84
  • Third Head Room: 1,417.32
  • Third Leg Room: 904.24
  • Third Shoulder Room: 1,701.8
  • Third Hip Room: 1,709.42
  • Fourth Head Room: N/A
  • Fourth Leg Room: N/A
  • Fourth Shoulder Room: N/A
  • Fourth Hip Room: N/A
  • Wheelbase: 3,759.2
  • Length, Overall w/rear bumper: N/A
  • Length, Overall: 5,981.7
  • Width, Max w/o mirrors: 2,065.02
  • Height, Overall: 2,519.68
  • Overhang, Front: 1,023.62
  • Overhang, Rear w/o bumper: N/A
  • Front Bumper to Back of Cab: N/A
  • Cab to Axle: N/A
  • Cab to End of Frame: N/A
  • Ground to Top of Load Floor: 731.52
  • Ground to Top of Frame: N/A
  • Frame Width, Rear: N/A
  • Ground Clearance, Front: 152.4
  • Ground Clearance, Rear: 152.4
  • Body Length: 0
  • Rear Door Opening Height: N/A
  • Rear Door Opening Width: N/A
  • Side Door Opening Height: N/A
  • Side Door Opening Width: N/A
  • Step Up Height - Front: N/A
  • Step Up Height - Side: N/A
  • Cargo Area Length @ Floor to Console: N/A
  • Cargo Area Length @ Floor to Seat 1: 3,599.18
  • Cargo Area Length @ Floor to Seat 2: 2,720.34
  • Cargo Area Length @ Floor to Seat 3: 1,935.48
  • Cargo Box Width @ Top, Rear: N/A
  • Cargo Area Width @ Beltline: 1,772.92
  • Cargo Box Width @ Floor: N/A
  • Cargo Box Width @ Wheelhousings: 1,363.98
  • Cargo Box (Area) Height: 1,717.04
  • Tailgate Width: N/A
  • Cargo Volume: N/A
  • Cargo Volume to Seat 1: 9,517.31
  • Cargo Volume to Seat 2: N/A
  • Cargo Volume to Seat 3: 2,658.96
  • Cargo Volume to Seat 4: 2,658.96
  • Ext'd Cab Cargo Volume: N/A
  • Cab to Body: N/A

Exterior

  • Side Door Type: Sliding

Standard Equipment

MECHANICAL

  • Engine: 3.5L PFDi V6 -inc: port injection and E-85 flex-fuel capability (STD)
  • Transmission: 10-Spd Automatic w/OD & SelectShift -inc: auxiliary transmission oil cooler (STD)
  • 3.73 Axle Ratio (STD)

ADDITIONAL EQUIPMENT

  • Transmission w/Oil Cooler
  • Rear-Wheel Drive
  • Block Heater
  • 70-Amp/Hr Maintenance-Free Battery w/Run Down Protection
  • HD 250 Amp Alternator
  • 1404.8 Kgs Maximum Payload
  • GVWR: 9,500 lb
  • Gas-Pressurized Front Shock Absorbers and HD Gas-Pressurized Rear Shock Absorbers
  • Front Anti-Roll Bar
  • Electric Power-Assist Steering
  • 95 L Fuel Tank
  • Single Stainless Steel Exhaust
  • Strut Front Suspension w/Coil Springs
  • Solid Axle Rear Suspension w/Leaf Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
  • Wheels w/Hub Covers
  • Tires: 235/65R16C 121/119 R AS BSW
  • Steel Spare Wheel
  • Full-Size Spare Tire Stored Underbody w/Crankdown
  • Black Front Bumper
  • Black Rear Bumper w/1 Tow Hook
  • Black Bodyside Cladding and Black Wheel Well Trim
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Black Power Side Mirrors w/Convex Spotter and Manual Folding
  • Fixed Rear Window w/Defroster
  • Rain Detecting Variable Intermittent Wipers
  • Deep Tinted Glass
  • Fully Galvanized Steel Panels
  • Black Grille
  • Sliding Rear Passenger Side Door
  • Split Swing-Out Rear Cargo Access
  • Tailgate/Rear Door Lock Included w/Power Door Locks
  • Ford Co-Pilot360 - Autolamp Auto On/Off Reflector Halogen Auto High-Beam Headlamps w/Delay-Off
  • Headlights-Automatic Highbeams
  • Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Steering Wheel Controls and External Memory Control
  • Radio: AM/FM Stereo
  • 8 Speakers
  • Streaming Audio
  • Fixed Antenna
  • Ford Connectivity Package (1-Year Included) -inc: unlimited Wi-Fi hotspot, connected navigation, audio and video streaming, voice assistant and entertainment, Note: Ford Connectivity Package included for one-year from warranty start date, Requires activation via the Ford app w/credit card authorization; customer may cancel at any time, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, Ford may temporarily slow data speeds if such data usage reaches or exceeds 50GB within a billing cycle or due to network limitations, If a customer uses more than 50% of their data usage in a roaming country during a 60-day period, Ford may remove or limit the customer's data plan
  • 1 LCD Monitor In The Front
  • Front Seats w/Cloth Back Material and Manual Driver Lumbar
  • 4-Way Driver Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support
  • 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
  • Removable Bench Front Facing Rear Seat
  • Manual Tilt/Telescoping Steering Column
  • Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer and Trip Odometer
  • Fixed Rear Windows and Fixed 3rd Row Windows
  • Ford Connect 5G Mobile Hotspot Internet Access
  • Removable Split-Bench 3rd Row Seat Front, 3 Manual and Adjustable Head Restraints
  • Removable Split-Bench Front Facing 4th Row Seat Number, Control and Type Head Restraint
  • Front Cupholder
  • Rear Cupholder
  • Proximity Key For Push Button Start Only
  • Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
  • Cruise Control w/Steering Wheel Controls
  • Voice Activated Manual Air Conditioning
  • Rear HVAC
  • HVAC -inc: Underseat Ducts
  • Locking Glove Box
  • Driver Foot Rest
  • Interior Trim -inc: Metal-Look Instrument Panel Insert
  • Full Cloth Headliner
  • Urethane Gear Shifter Material
  • Cloth Front Bucket Seats
  • Day-Night Rearview Mirror
  • Driver And Passenger Visor Vanity Mirrors
  • Partial Floor Console w/Storage and 2 12V DC Power Outlets
  • Front Map Lights
  • Fade-To-Off Interior Lighting
  • Full Vinyl/Rubber Floor Covering
  • Vinyl/Rubber Floor Trim
  • Cargo Space Lights
  • Smart Device Integration
  • SYNC 4 -inc: 12" centre display, Bluetooth, dual USB ports, electronic climate control and connectivity package which includes information on demand panel, wireless Apple CarPlay and Android Auto compatibility, cloud connected, 911 Assist and digitial owner's manual
  • Instrument Panel Bin, Driver / Passenger And Rear Door Bins
  • Power 1st Row Windows w/Driver 1-Touch Down
  • Power Door Locks w/Autolock Feature
  • Driver Information Centre
  • Analog Appearance
  • Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
  • Driver And Front Passenger Armrests
  • Securilock Anti-Theft Ignition (pats) Immobilizer
  • 2 12V DC Power Outlets
  • Ford Co-Pilot360 w/Side Wind Stabilization Electronic Stability Control (ESC) And Roll Stability Control (RSC)
  • ABS And Driveline Traction Control
  • Side Impact Beams
  • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
  • Front And Rear Parking Sensors
  • PCA with AEB and Intersection Assist
  • Lane-Keeping System Lane Keeping Assist
  • Lane-Keeping System Lane Departure Warning
  • Collision Mitigation-Front
  • Driver Monitoring-Alert
  • Low Tire Pressure Warning
  • Dual Stage Driver And Passenger Front Airbags
  • Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags
  • Airbag Occupancy Sensor
  • Outboard Front Lap And Shoulder Safety Belts -inc: Rear Centre 3 Point, Height Adjusters and Pretensioners
  • Back-Up Camera

WHEELS

  • Wheels: 16" Silver Steel w/Black Hubcap

INTERIOR

  • Dark Palazzo Grey Cloth Bucket Seats -inc: 2-way manual driver seat w/lumbar, 2-way manual passenger seat, 2-way adjustable headrest and driver and passenger armrest (STD)

Price Quote
